Mounted Units & Pillow Blocks

Cast Iron Pillow Block & Flange Mounted Bearing Units

Engineering Mark:

Rugged cast iron housing pillow blocks (UCP series) and 4-bolt flange units (UCF series) fitted with self-aligning insert ball bearings with grease zerk lubrication nipples and eccentric locking collars or set screws.

Standards: JIS B 1559 ASTM A48 Class 30 Cast Iron Double Lip Contact NBR Seals Pre-Lubricated NLGI #2 Lithium Grease

01 Heavy-duty solid foot cast iron housing

02 Spherical outer ring compensates for shaft deflection

03 Grease fitting allows re-lubrication in dusty plants

FILTERED SPECIFICATION MATRIX

Mounted Units & Pillow Blocks Inventory Table

← All Industrial Bearings Review Quote Basket →

ENGINEERING SPECIFICATION MATRIX

Mounted Units & Pillow Blocks (20 Models)

Showing 20 of 20 models

Part Number	Description & Specs	Key Dimensions	Material & Standards	Availability
UCP204UCP Series	Mounted Units & Pillow Blocks UCP204 Solid Foot Pillow Block Unit (20mm Shaft) Industrial grade self-aligning mounted unit housing with pre-lubricated high-grade synthetic grease, flingers and contact seals for harsh grain handling and sawmills.	shaftDiameter: 20 mm (0.7874 in) housingStyle: Solid Foot Pillow Block overallDimension: 127 mm	Cast Iron HT200 with GCr15 Chrome Insert ISO 3228 · JIS B 1559	In Stock
UCP205UCP Series	Mounted Units & Pillow Blocks UCP205 Solid Foot Pillow Block Unit (25mm Shaft) Industrial grade self-aligning mounted unit housing with pre-lubricated high-grade synthetic grease, flingers and contact seals for harsh grain handling and sawmills.	shaftDiameter: 25 mm (0.9843 in) housingStyle: Solid Foot Pillow Block overallDimension: 140 mm	Cast Iron HT200 with GCr15 Chrome Insert ISO 3228 · JIS B 1559	In Stock
UCP206UCP Series	Mounted Units & Pillow Blocks UCP206 Solid Foot Pillow Block Unit (30mm Shaft) Industrial grade self-aligning mounted unit housing with pre-lubricated high-grade synthetic grease, flingers and contact seals for harsh grain handling and sawmills.	shaftDiameter: 30 mm (1.1811 in) housingStyle: Solid Foot Pillow Block overallDimension: 165 mm	Cast Iron HT200 with GCr15 Chrome Insert ISO 3228 · JIS B 1559	In Stock
UCP207UCP Series	Mounted Units & Pillow Blocks UCP207 Solid Foot Pillow Block Unit (35mm Shaft) Industrial grade self-aligning mounted unit housing with pre-lubricated high-grade synthetic grease, flingers and contact seals for harsh grain handling and sawmills.	shaftDiameter: 35 mm (1.3780 in) housingStyle: Solid Foot Pillow Block overallDimension: 167 mm	Cast Iron HT200 with GCr15 Chrome Insert ISO 3228 · JIS B 1559	In Stock
UCP208UCP Series	Mounted Units & Pillow Blocks UCP208 Solid Foot Pillow Block Unit (40mm Shaft) Industrial grade self-aligning mounted unit housing with pre-lubricated high-grade synthetic grease, flingers and contact seals for harsh grain handling and sawmills.	shaftDiameter: 40 mm (1.5748 in) housingStyle: Solid Foot Pillow Block overallDimension: 184 mm	Cast Iron HT200 with GCr15 Chrome Insert ISO 3228 · JIS B 1559	In Stock
UCP209UCP Series	Mounted Units & Pillow Blocks UCP209 Solid Foot Pillow Block Unit (45mm Shaft) Industrial grade self-aligning mounted unit housing with pre-lubricated high-grade synthetic grease, flingers and contact seals for harsh grain handling and sawmills.	shaftDiameter: 45 mm (1.7717 in) housingStyle: Solid Foot Pillow Block overallDimension: 190 mm	Cast Iron HT200 with GCr15 Chrome Insert ISO 3228 · JIS B 1559	In Stock

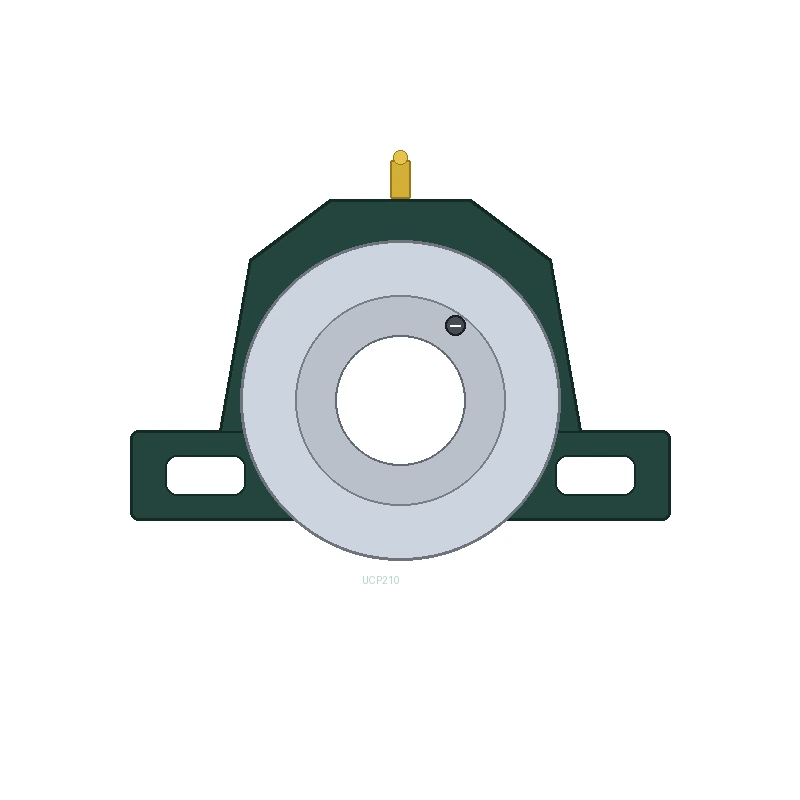

UCP210UCP Series	Mounted Units & Pillow Blocks UCP210 Solid Foot Pillow Block Unit (50mm Shaft) Industrial grade self-aligning mounted unit housing with pre-lubricated high-grade synthetic grease, flingers and contact seals for harsh grain handling and sawmills.	shaftDiameter: 50 mm (1.9685 in) housingStyle: Solid Foot Pillow Block overallDimension: 206 mm	Cast Iron HT200 with GCr15 Chrome Insert ISO 3228 · JIS B 1559	In Stock
UCP211UCP Series	Mounted Units & Pillow Blocks UCP211 Solid Foot Pillow Block Unit (55mm Shaft) Industrial grade self-aligning mounted unit housing with pre-lubricated high-grade synthetic grease, flingers and contact seals for harsh grain handling and sawmills.	shaftDiameter: 55 mm (2.1654 in) housingStyle: Solid Foot Pillow Block overallDimension: 219 mm	Cast Iron HT200 with GCr15 Chrome Insert ISO 3228 · JIS B 1559	In Stock
UCP212UCP Series	Mounted Units & Pillow Blocks UCP212 Solid Foot Pillow Block Unit (60mm Shaft) Industrial grade self-aligning mounted unit housing with pre-lubricated high-grade synthetic grease, flingers and contact seals for harsh grain handling and sawmills.	shaftDiameter: 60 mm (2.3622 in) housingStyle: Solid Foot Pillow Block overallDimension: 241 mm	Cast Iron HT200 with GCr15 Chrome Insert ISO 3228 · JIS B 1559	In Stock
UCP307UCP Series	Mounted Units & Pillow Blocks UCP307 Heavy Duty Pillow Block Unit (35mm Shaft) Industrial grade self-aligning mounted unit housing with pre-lubricated high-grade synthetic grease, flingers and contact seals for harsh grain handling and sawmills.	shaftDiameter: 35 mm (1.3780 in) housingStyle: Heavy Duty Pillow Block overallDimension: 180 mm	Ductile Iron FCD450 with GCr15 Chrome Insert ISO 3228 · JIS B 1559	In Stock
UCP308UCP Series	Mounted Units & Pillow Blocks UCP308 Heavy Duty Pillow Block Unit (40mm Shaft) Industrial grade self-aligning mounted unit housing with pre-lubricated high-grade synthetic grease, flingers and contact seals for harsh grain handling and sawmills.	shaftDiameter: 40 mm (1.5748 in) housingStyle: Heavy Duty Pillow Block overallDimension: 200 mm	Ductile Iron FCD450 with GCr15 Chrome Insert ISO 3228 · JIS B 1559	In Stock

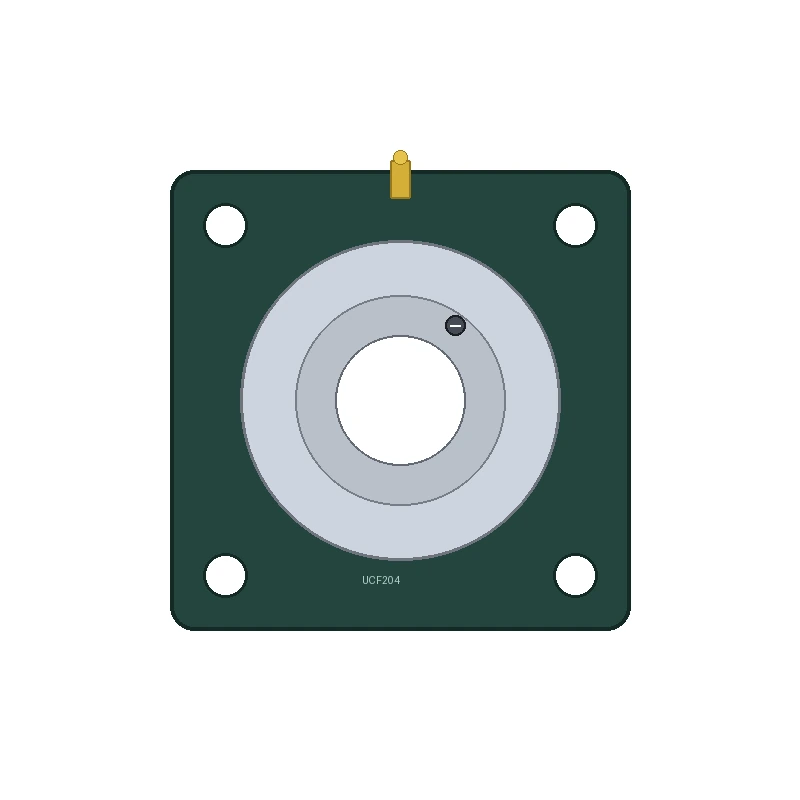

UCF204UCF Series	Mounted Units & Pillow Blocks UCF204 4-Bolt Square Flange Unit (20mm Shaft) Industrial grade self-aligning mounted unit housing with pre-lubricated high-grade synthetic grease, flingers and contact seals for harsh grain handling and sawmills.	shaftDiameter: 20 mm (0.7874 in) housingStyle: 4-Bolt Square Flange overallDimension: 86 mm	Cast Iron HT200 with GCr15 Chrome Insert ISO 3228 · JIS B 1559	In Stock
UCF205UCF Series	Mounted Units & Pillow Blocks UCF205 4-Bolt Square Flange Unit (25mm Shaft) Industrial grade self-aligning mounted unit housing with pre-lubricated high-grade synthetic grease, flingers and contact seals for harsh grain handling and sawmills.	shaftDiameter: 25 mm (0.9843 in) housingStyle: 4-Bolt Square Flange overallDimension: 95 mm	Cast Iron HT200 with GCr15 Chrome Insert ISO 3228 · JIS B 1559	In Stock
UCF206UCF Series	Mounted Units & Pillow Blocks UCF206 4-Bolt Square Flange Unit (30mm Shaft) Industrial grade self-aligning mounted unit housing with pre-lubricated high-grade synthetic grease, flingers and contact seals for harsh grain handling and sawmills.	shaftDiameter: 30 mm (1.1811 in) housingStyle: 4-Bolt Square Flange overallDimension: 108 mm	Cast Iron HT200 with GCr15 Chrome Insert ISO 3228 · JIS B 1559	In Stock

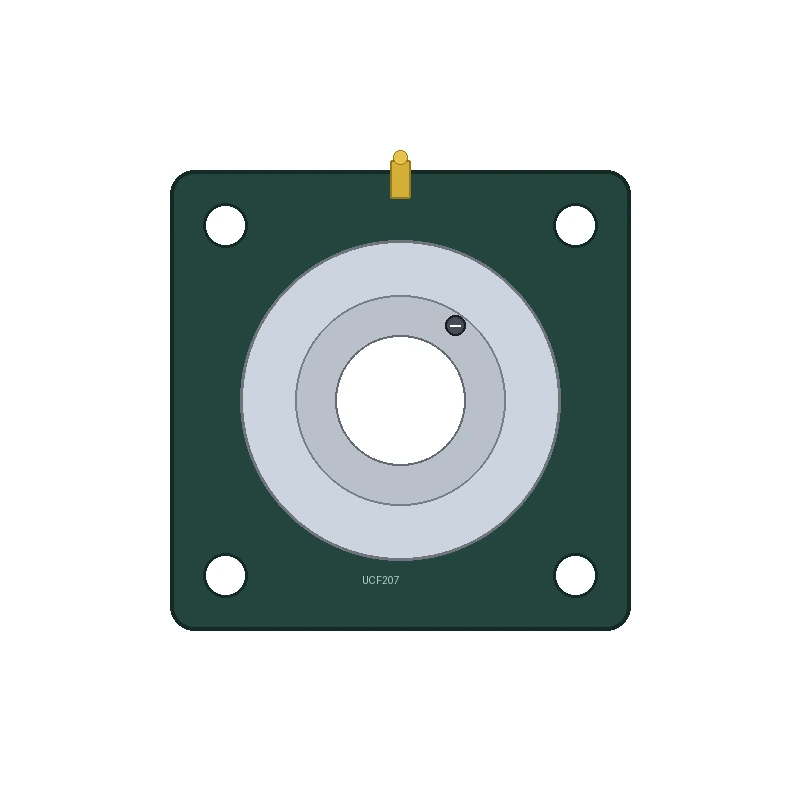

UCF207UCF Series	Mounted Units & Pillow Blocks UCF207 4-Bolt Square Flange Unit (35mm Shaft) Industrial grade self-aligning mounted unit housing with pre-lubricated high-grade synthetic grease, flingers and contact seals for harsh grain handling and sawmills.	shaftDiameter: 35 mm (1.3780 in) housingStyle: 4-Bolt Square Flange overallDimension: 117 mm	Cast Iron HT200 with GCr15 Chrome Insert ISO 3228 · JIS B 1559	In Stock
UCF208UCF Series	Mounted Units & Pillow Blocks UCF208 4-Bolt Square Flange Unit (40mm Shaft) Industrial grade self-aligning mounted unit housing with pre-lubricated high-grade synthetic grease, flingers and contact seals for harsh grain handling and sawmills.	shaftDiameter: 40 mm (1.5748 in) housingStyle: 4-Bolt Square Flange overallDimension: 130 mm	Cast Iron HT200 with GCr15 Chrome Insert ISO 3228 · JIS B 1559	In Stock
UCF209UCF Series	Mounted Units & Pillow Blocks UCF209 4-Bolt Square Flange Unit (45mm Shaft) Industrial grade self-aligning mounted unit housing with pre-lubricated high-grade synthetic grease, flingers and contact seals for harsh grain handling and sawmills.	shaftDiameter: 45 mm (1.7717 in) housingStyle: 4-Bolt Square Flange overallDimension: 137 mm	Cast Iron HT200 with GCr15 Chrome Insert ISO 3228 · JIS B 1559	In Stock
UCF210UCF Series	Mounted Units & Pillow Blocks UCF210 4-Bolt Square Flange Unit (50mm Shaft) Industrial grade self-aligning mounted unit housing with pre-lubricated high-grade synthetic grease, flingers and contact seals for harsh grain handling and sawmills.	shaftDiameter: 50 mm (1.9685 in) housingStyle: 4-Bolt Square Flange overallDimension: 143 mm	Cast Iron HT200 with GCr15 Chrome Insert ISO 3228 · JIS B 1559	In Stock
UCFL204UCF Series	Mounted Units & Pillow Blocks UCFL204 2-Bolt Oval Flange Unit (20mm Shaft) Industrial grade self-aligning mounted unit housing with pre-lubricated high-grade synthetic grease, flingers and contact seals for harsh grain handling and sawmills.	shaftDiameter: 20 mm (0.7874 in) housingStyle: 2-Bolt Oval Flange overallDimension: 113 mm	Cast Iron HT200 with GCr15 Chrome Insert ISO 3228 · JIS B 1559	In Stock
UCFL205UCF Series	Mounted Units & Pillow Blocks UCFL205 2-Bolt Oval Flange Unit (25mm Shaft) Industrial grade self-aligning mounted unit housing with pre-lubricated high-grade synthetic grease, flingers and contact seals for harsh grain handling and sawmills.	shaftDiameter: 25 mm (0.9843 in) housingStyle: 2-Bolt Oval Flange overallDimension: 130 mm	Cast Iron HT200 with GCr15 Chrome Insert ISO 3228 · JIS B 1559	In Stock

Rows per page:Showing 1 - 20 of 20 models
